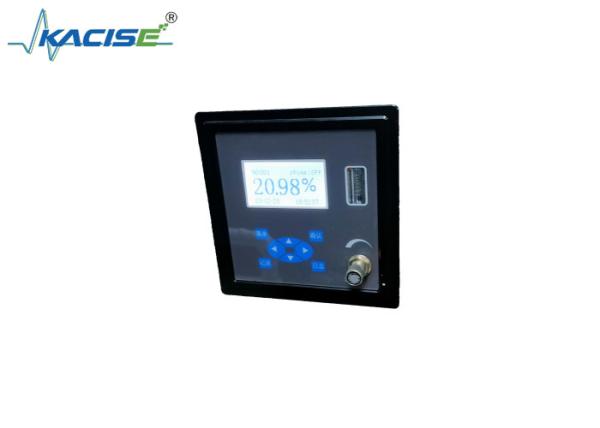

The KTG112-C oxygen analyzer is used for on-line analysis of oxygen content
Introduction
The KTG112-C oxygen analyzer is a new type of intelligent industrial on-line analyzer developed by integrating the electrochemical detection principle, imported high-performance electrochemical sensors, and new microcomputer technology.
Application Areas
It is applied to the on-line analysis of oxygen content in nitrogen production from air separation, storage, chemical processes, protective gases in high-temperature sintering furnaces for magnetic materials, protective gases in the electronics industry, as well as in the glass and building materials industries.
Instrument Features
- It uses imported fuel cell sensors, which are characterized by long lifespan, high accuracy, and fast response.
- Equipped with electronic flow control, there is no blockage issue.
- It has a timed automatic storage function, allowing users to view stored data at any time.
- Alarm points can be set arbitrarily within the full measurement range.
Technical Parameters
Measurement Range: (0.00 - 25.00)%.
Stability: Zero drift ±1％FS/; Span drift ±1％FS.
Repeatability: ±1％FS.
Sample Gas Flow Rate: (400 ± 20) ml/min.
Response Time: T90 ≤ 15 seconds.
Analog Output: (4 - 20) mA standard signal. (0 - 10) mA is optional, please specify when ordering.
Digital Output: Standard RS485 communication port, enabling two-way communication with a computer.
Sample Gas Pressure: 0.05 MPa ≤ Inlet pressure ≤ 0.25 MPa.
Operating Environment: Temperature: -15°C - +45°C; Humidity: ≤90% RH.
Operating Power Supply: (220 ± 22) VAC, (50 ± 5) Hz.
Overall Dimensions: 160mm (Width) × 160mm (Height) × 260mm (Depth).
Installation Dimensions: 155mm (Width) × 153mm (Height).
Weight: Approximately 2.2 kg.
