KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

  • 1
  • 2
  • 3

Brand Name : KACISE

Model Number : KWS-750

Certification : CE

Place of Origin : china

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measuring Range : 0～14pH

Accuracy : ±0.1pH

Resolution : 0.01pH

Work Pressure : ＜0.2MPa

Output : RS-485, MODBUS protocol

Power Supply : 12～24VDC ±10%

Wetted Part Material : POM

Ip Grade : IP68

Contact Now

The KWS-750 on-line pH sensor is used for environmental water quality monitoring

Introduction
The KWS-750 On-line pH Sensor is an essential instrument for environmental water quality monitoring. This sensor is engineered with cutting-edge technology to accurately and continuously measure the pH levels of water in diverse environmental settings. It is highly sensitive, capable of detecting even the minutest variations in acidity or alkalinity. The sensor's robust construction allows it to endure the rigors of outdoor deployments, including exposure to fluctuating temperatures, moisture, and potential contaminants. Its real-time data transmission capabilities provide instant feedback to environmental agencies and research institutions. By precisely monitoring pH, it aids in identifying potential sources of pollution, assessing the health of aquatic ecosystems, and guiding remediation efforts. The KWS-750 On-line pH Sensor thus serves as a reliable guardian of our precious water resources, ensuring their long-term viability and ecological integrity.

Feature

  • Signal output: RS-485 (Modbus/RTU protocol).
  • Convenient connection to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
  • Double high-impedance differential amplifier with strong anti-interference and fast response.
  • The patented pH probe, the internal reference solution oozes very slowly from the microporous salt bridge under the pressure of at least 100KPa (1Bar), and its forward bleed continues for more than 20 months. Such a reference system is very stable and the electrode life is extended by a factor of two compared to conventional industrial electrodes.
  • Easy to install: 3/4 NPT pipe thread for easy submersible installation or installation in pipes and tanks.

Technical Specifications

Model KWS-750
Measuring Range 0～14pH
Accuracy ±0.1pH
Resolution 0.01pH
Temperature Range 0 ~ 65℃
Work Pressure ＜0.2MPa
Temperature Compensation automatic temperature compensation
Output RS-485, MODBUS protocol
Power Supply 12～24VDC ±10%
Wetted Part Material POM
Installation Immersion mounting, 3/4 NPT thread
Cable Length 5 m, customizable
Calibration Method Two-point calibration
Power Consumption ＜0.3W@12V
Ip Grade IP68

Dimension

KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

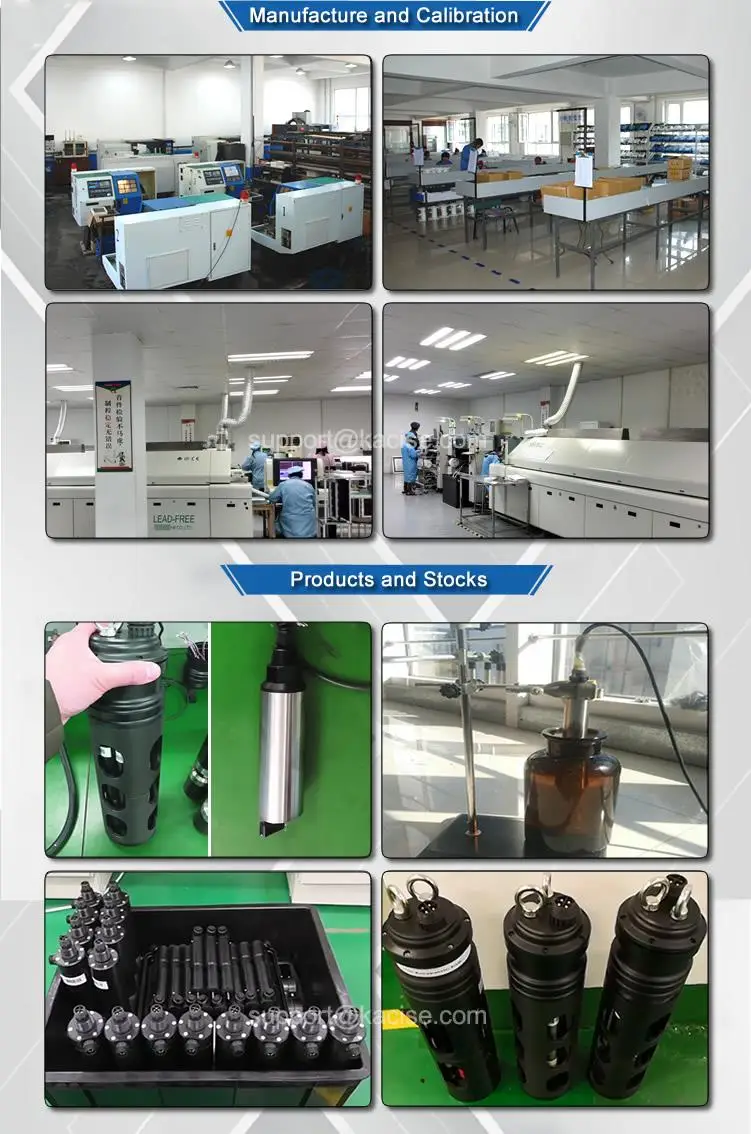

Product flow

KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

Packaging & Shipping

KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

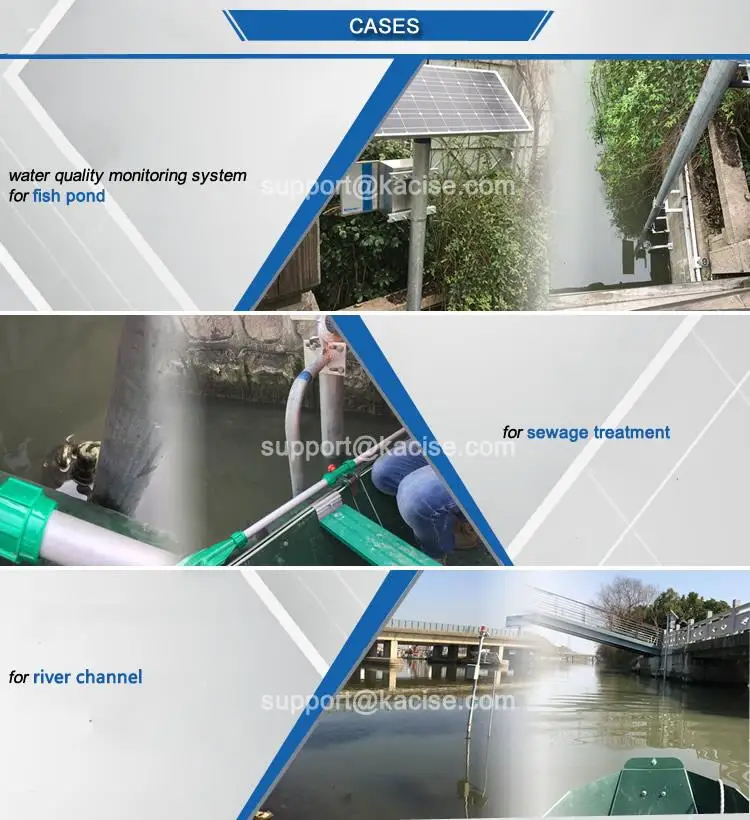

Case

KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

Company Information

KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

We supply high quality Online Digital pH Sensor hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

Certificates

KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.

Feedback

KWS-750 On-line PH Sensor For Environmental Water Quality Monitoring

FAQ

1. Q: What information need to be provided to choose the suitable The KWS-750 on-line pH sensor is used for environmental water quality monitoring?

A: Please provide us: application filed, measuring range, power supply and output, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
