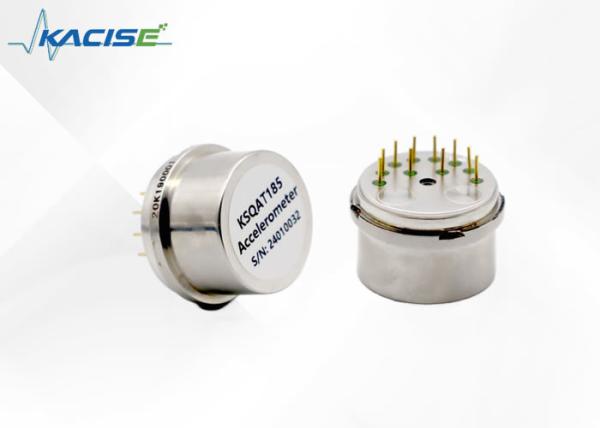

Product Description:
Quartz flexible accelerometer is a precision instrument that is composed of quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier experiences acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance, which allows users to choose the sampling resistance based on their requirements without impacting the stability of the system.
Currently, we offer a series of products for our quartz flexible accelerometer. The types range from high-precision μg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer. We offer as many as dozens of types, and are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and other fields. Our quartz flexible accelerometer provides signals for navigation, guidance, control, leveling, monitoring and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter | KSQAT160 | KSQAT185 |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±10g | ±10g |
| Bias | ≤20mg | ≤20mg |
| Temperature Sensitivity | ≤150μg/°C | ≤150μg/°C |
| Three-hour Stability(1σ) | ≤100μg | ≤150μg |
| Scale Factor | 2.3 ~ 3.5mA/g | 1.3 ~ 3.5mA/g |
| Temperature Sensitivity | ≤150ppm/°C | ≤300ppm/°C |
| Three-hour Stability(1σ) | ≤100ppm | ≤150ppm |
| Size | Ø25×25mm | Ø25×25mm |
| Weight | ≤60g | ≤60g |
| Environment |
| Operating Temperature | -45°C~+160°C | -45°C~+185°C |
| Storage temperature | -55°C～+170°C | -55°C～+190°C |
| Shock | 1000g |
| Vibration Peak Sine | 20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
