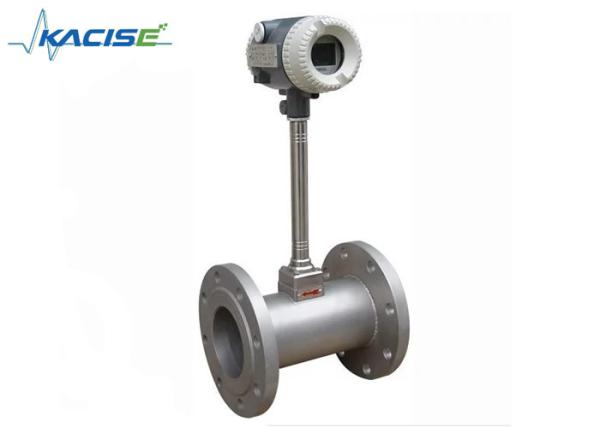

Pipeline-type Flanged Installation Vortex Flow Meter Gas Flow Meter
Introduction
Vortex flowmeter is a flow meter operating with Karman Vortex Street principle for flow rate of gases (air, oxygen, nitrogen, coal gas, natural gas, chemical gas, etc.). It could be used in automatic control system as flow transmitter. The product adopted advanced differential technique, together with measurement of isolating, shielding and filtering, it had possesses better anti-vibration performance and signal stability.
Features
1. Flange body: integrally forged pieces, it will avoid break down into pieces.100% SS304 material,we can provide material report.
2. Circuit Board: Digital circuit board,anti most of the supplier use analog circuit board,digital circuit board enjoy the advantages of anti-vibration and anti-interference.
3. Flow converter: Distinctive modular design, amateurs can operate, disassemble and assemble easily, it will avoid accident risks.
4. Welding: adopt the advanced fish scale technology,which makes the welding seam looks nice and smooth.
5. Japan OVAL technology with embedded-type sensor, triangular prism will not fall off, we already apply for patent.
6. Our medium temperature sensor can measure highest temperature around 350℃,normal it is -40~250℃.
Parameters
| Pipe Diameter | DN15~DN1800 |
| Meter Materials | 1Cr18Ni9Ti |
| Nominal pressure (Mpa) | 1.6Mpa; 2.5Mpa; 4.0Mpa |
| Measured medium temperature (℃) | -40~+250℃; -40~+350℃ |
| Environmental conditions | Temperature:-10~+55℃, humidity 5%~90%, pressure: 86~106Kpa |
| Accuracy class | liquid: reading ±0.5 |
| Measuring gas or steam: | reading±1.0,±1.5 |
| Turndown ratio | 1:10;1:15 |
| Pressure loss coefficient | Cd<2.6 |
| Output signal | 4-20mA or Pulse |
| Power supply | sensor: +12VDC, +24VDC transmitter: +24VDC On site display: 3.2V battery |
| Signal transmission lines | STVPV3×0.3(three-wire), 2×0.3(two- wire) |
| Installation | Integrated clamping flange or flange connection |
| Transmission distance | ≤500m |
| Signal line interface | Male threadM20×1.5 |
| Explosion levels | ExdIIBT6 |
| Protection class | IP65 |
| Allow vibration acceleration | 1.0g |
Model selection
| KVF | | | | | | | | | | | Parameters |
| Nominal diameter | DNXX | | | | | | | | | | DN15~DN1800 (mm) |
| Structure | F | | | | | | | | | Remote type with display |
| Y | | | | | | | | | Compact type with display |
| Accuracy | A | | | | | | | | Pipe type: Class 1.0 |
| B | | | | | | | | Insertion type: Class 2.5 |
| Nominal pressure | 16 | | | | | | | 1.6Mpa |
| XX | | | | | | | Customization |
| Max. temp. of medium | M | | | | | | <250℃ |
| H | | | | | | >250℃ |
| Other function | P | | | | | With pressure compensation |
| T | | | | | With temperature compensation |
| PT | | | | | With pressure and temperature compensation |
| Power | 1 | | | | 12~28VDC |
| 2 | | | | 85~265VAC (Remote display) |
| 3 | | | | 3.6V lithium battery (on site display) |
| Output | A | | | 4-20mA |
| M | | | Voltage pulse |
| H | | | HART |
| R1 | | | RS232 |
| R2 | | | RS485 |
| Installation | 1 | | Flange |
| 2 | | Clamp flange |
| 3 | | Insertion |
| 4 | | Thread |
| 5 | | Clamp |
| Explosion proof | A | No explosion proof |
| B | Intrinsic explosion proof |
| G | Flame proof |
